This fan has the characteristics of large air duct, large blade diameter, ultra-large exhaust volume, ultra-low energy consumption, low speed, low noise, etc., especially when used under the cooling bed, it can achieve large area and large flow ventilation at a reasonable wind speed, which is one of the most economical and effective ways.
SDA series fans are divided into three models: 6A, 7A, and 9A.
In the actual application at the bottom of the cooling bed, the axial flow fan is installed centrally at the bottom of the cooling bed, and the air inlet is located in the area near the ground at the bottom of the cooling bed. The height is small, but the air inlet area is large, which can blow directly the room temperature air near the ground to the aluminum profile. The hot air after cooling the aluminum profile is dissipated in the workshop, and then mixed with the atmosphere, cooled to room temperature and settled to the bottom of the workshop. Therefore, axial flow fans can push and promote air circulation in the space, achieving efficient and economical cooling of aluminum profiles in a limited space.
SDA series axial flow fans are also suitable for various other applications that require large area and large air volume cooling.

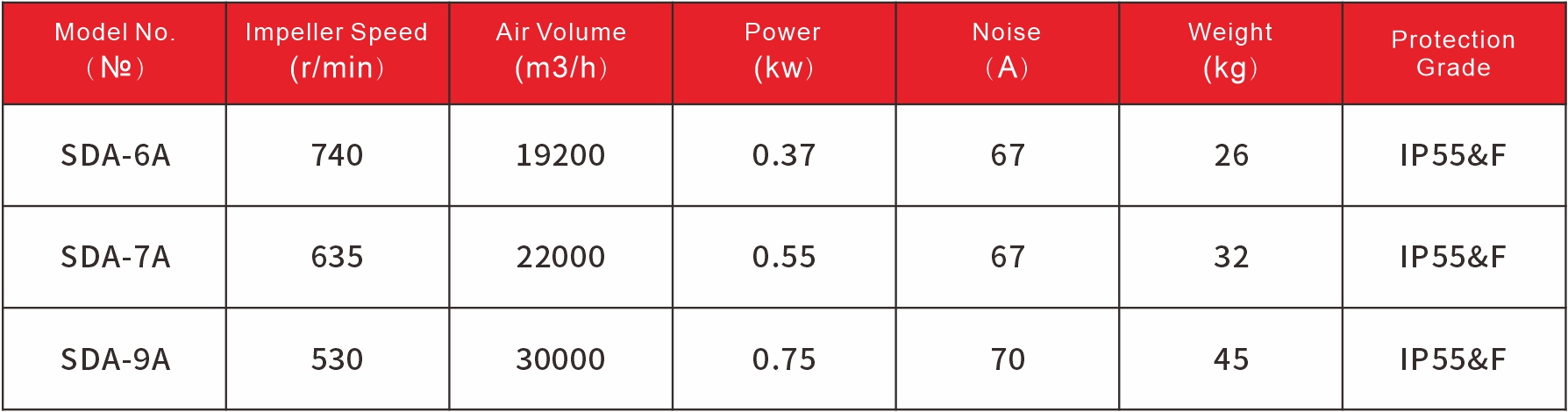

Product Parameter

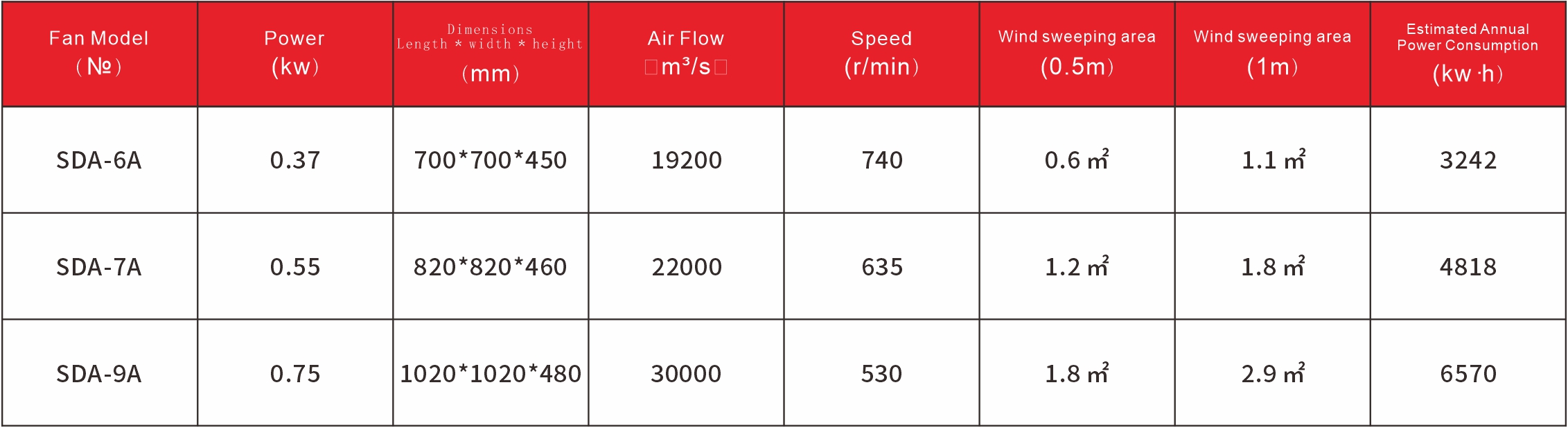

Product Performance

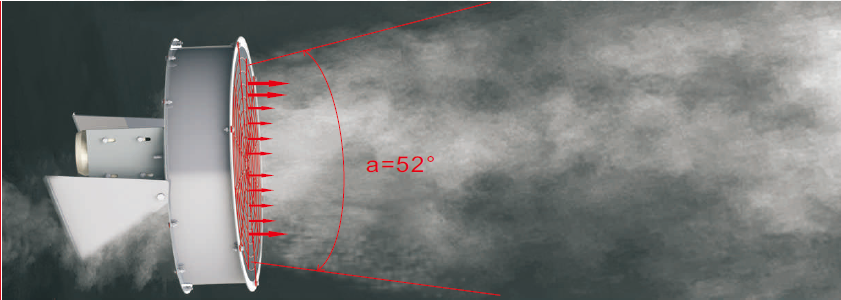

Selection remarks : This series of fans has large air volume, relatively moderate wind speed, and large wind sweeping area. It is suitable for occasions that require close distance, large range, and long-term slow cooling (ventilation).
Note: Estimated annual power consumption ((kW·h) = motor power (kW) * 24 hours/day * 365 days
